【Python】混合ガウス分布【scikit-learn】

1. 理論

モデルを宣言し、fitでデータを当てはめます。

当てはめた後のオブジェクト(gmm)が学習後のモデルです。

means_メソッドやbicメソッド、predictを利用して下流の解析に用います。

# libraries

from sklearn import mixture

from sklearn.mixture import GaussianMixture

# data

xy = np.array(res_decomposition.iloc[:, :2])

# fit

gmm = mixture.GaussianMixture(

    n_components = 50,

    covariance_type = 'full', # ['spherical', 'tied', 'diag', 'full']

    n_init = 10,

    reg_covar = 0.1,

    random_state=42

gmm.fit(xy)

ハイパーパラメータをBICに基づいて選択し、ベストなモデルを返す関数とその実行例は以下です。

def calc_gmm_BICs(

    res_decomposition,

    n_component,

    cv_types = ['spherical', 'tied', 'diag', 'full'],

    reg_covar = 0.1

):

    # to nparray

    xy = np.array(res_decomposition.iloc[:, :2])

    # BIC

    BICs = []

    best_gmm = None

    lowest_bic = np.infty

    lowest_bic_cv_type = ""

    lowest_bic_n_component = 0

    n_components_range = range(1, n_component + 1)

    n_init = 10

    for cv_type in cv_types:

        for n_components in n_components_range:

            gmm = mixture.GaussianMixture(

                n_components = n_components,

                covariance_type = cv_type,

                n_init = n_init,

                reg_covar = reg_covar,

                random_state=42

            gmm.fit(xy)

            BICs.append(gmm.bic(xy))

            if BICs[-1] < lowest_bic:

                lowest_bic = BICs[-1]

                best_gmm = gmm

                lowest_bic_cv_type = cv_type

                lowest_bic_n_component = n_components

    return {

        'best_gmm': best_gmm,

        'BICs': BICs,

        'lowest_bic': lowest_bic,

        'lowest_bic_cv_type': lowest_bic_cv_type,

        'lowest_bic_n_component': lowest_bic_n_component,

        'n_component': n_component,

        'cv_types': cv_types,

        'reg_covar': reg_covar

# PCAとUMAPの各々についてBICを計算

bic_results_pca = calc_gmm_BICs(res_pca, 50)

bic_results_umap = calc_gmm_BICs(res_umap, 50)

# 結果の保存

no = now()

os.makedirs(f'{TEMP_DIR}/best_gmm/{no}')

pickle_save(f'{TEMP_DIR}/best_gmm/{no}/bic_dict_pca.pkl', bic_results_pca)

pickle_save(f'{TEMP_DIR}/best_gmm/{no}/bic_dict_umap.pkl', bic_results_umap)

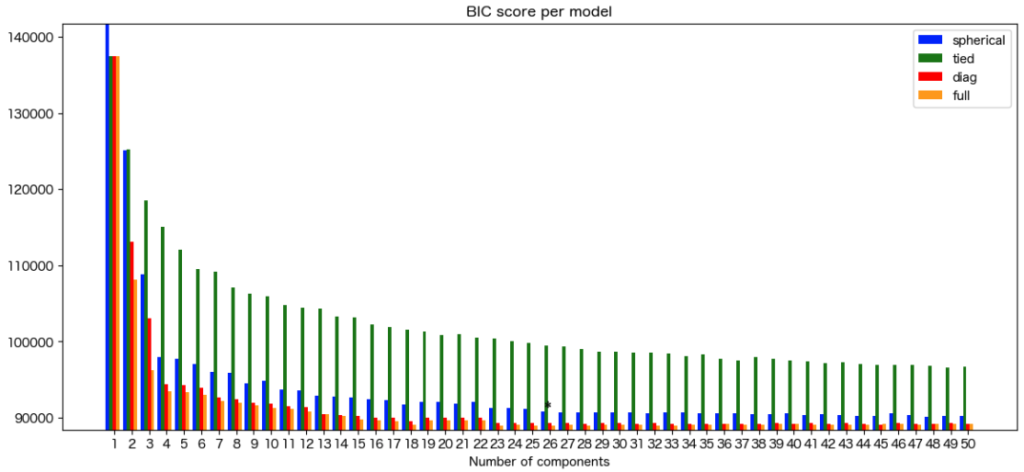

上記の結果を棒グラフで可視化する関数は以下です。

# library

import itertools

# Plot the BIC scores

def plot_gmm_BICs(bic_results, cv_colors = ['blue', 'green', 'red', 'orange']):

    # unpacking

    BICs = np.array(bic_results['BICs'])

    n_components_range = range(1, bic_results['n_component'] + 1)

    cv_types = bic_results['cv_types']

    # figure

    plt.figure(figsize=(14, 6),dpi=100)

    ax = plt.subplot(111)

    # bar plot

    bars = []

    cv_colors_iter = itertools.cycle(cv_colors)

    for i, (cv_type, color) in enumerate(zip(cv_types, cv_colors_iter)):

        xposes = np.array(n_components_range) + .2 * (i - 2)

        bars.append(plt.bar(xposes, BICs[i * len(n_components_range):(i + 1) * len(n_components_range)], width=.2, color=color))

    # text (place * near the best model)

    xpos = BICs.argmin() % len(n_components_range) + .65 + .2 * BICs.argmin() // len(n_components_range)

    plt.text(xpos, BICs.min() * 0.97 + .03 * BICs.max(), '*', fontsize=14)

    # layouts

    plt.title(f'BIC score per model')

    plt.xticks(n_components_range)

    ax.set_xlabel('Number of components')

    plt.ylim([BICs.min() * 1.01 - .01 * BICs.max(), BICs.max()])

    ax.legend([b[0] for b in bars], cv_types)

    # shoe

    plt.show()

上記関数の実施例は以下です。

plot_gmm_BICs(bic_results_pca)

# 平均 (各componentの平均)

mean_x = best_gmm.means_[:, 0]

mean_y = best_gmm.means_[:, 1]

# BIC

gmm.bic(xy)

どのcomponentに属するか予測(クラスタリング)

clusters = [i + 1 for i in best_gmm.predict(xy)]

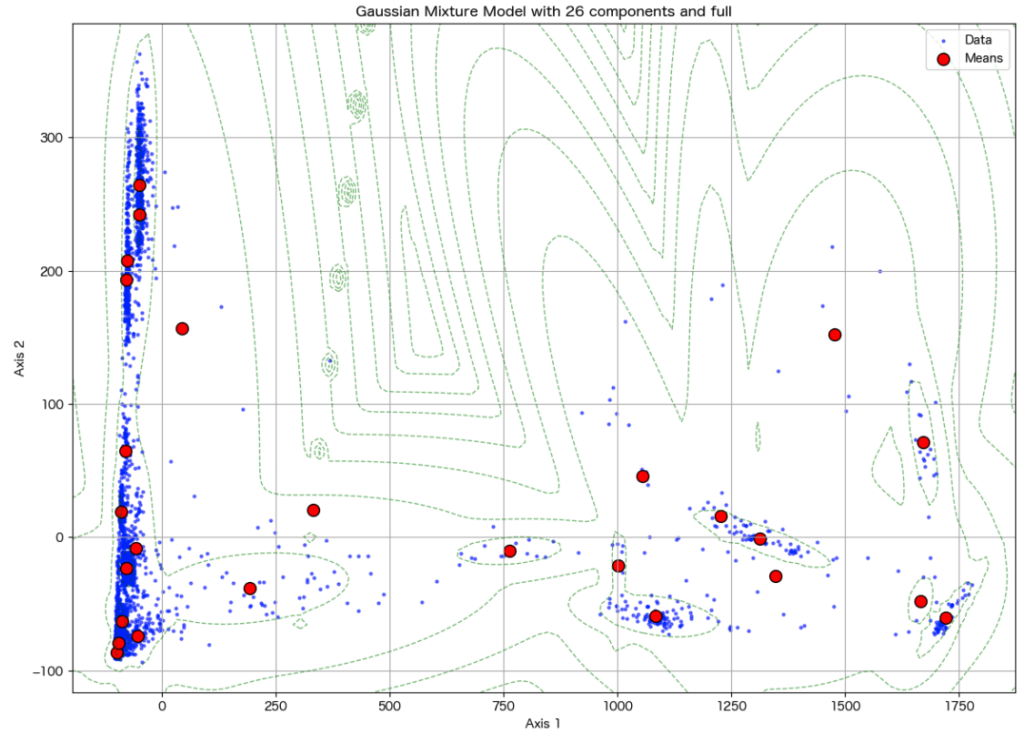

関数と実行例は以下です。

def plot_decomposition_with_best_gmm(data, bic_results):

    # to nparray

    xy = np.array(data.iloc[:, :2])

    # unpacking

    best_gmm = bic_results['best_gmm']

    lowest_bic_n_component = bic_results['lowest_bic_n_component']

    lowest_bic_cv_type = bic_results['lowest_bic_cv_type']

    # plot decomsition

    plt.figure(figsize=(14, 10))

    plt.scatter(xy[:, 0], xy[:, 1], s=5, label='Data', color='blue', alpha=0.5)

    # plot cluster centers

    plt.scatter(best_gmm.means_[:, 0], best_gmm.means_[:, 1], marker='o', s=100, label='Means', color='red', edgecolors='black')

    # plot contours

    x_min, x_max = min(xy[:,0]), max(xy[:,0])

    y_min, y_max = min(xy[:,1]), max(xy[:,1])

    x_delta, y_delta = x_max - x_min, y_max - y_min

    x = np.linspace(x_min - 0.05 * x_delta, x_max + 0.05 * x_delta, 100)

    y = np.linspace(y_min - 0.05 * y_delta, y_max + 0.05 * y_delta, 100)

    X_grid, Y_grid = np.meshgrid(x, y)

    Z = -best_gmm.score_samples(np.array([X_grid.ravel(), Y_grid.ravel()]).T)

    Z = Z.reshape(X_grid.shape)

    plt.contour(X_grid, Y_grid, Z, levels=10, linewidths=1, colors='green', linestyles='dashed', alpha=0.5)

    # layout

    plt.xlabel('Axis 1')

    plt.ylabel('Axis 2')

    plt.title(f'Gaussian Mixture Model with {lowest_bic_n_component} components and {lowest_bic_cv_type}')

    plt.legend()

    plt.grid(True)

    plt.show()

plot_decomposition_with_best_gmm(res_pca, bic_results_pca)
